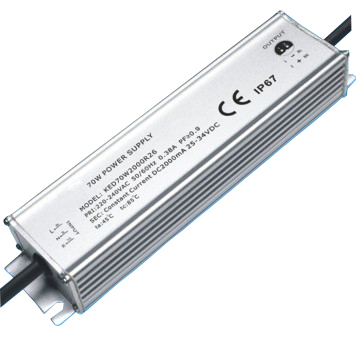

Waterproof LED Driver-WLD-A



Model No. Power Input   Power factor Dimensions
WLD-A20 50W 220-240VAC 50/60Hz >0.9 205x50x32 mm
WLD-A30 30W 220-240VAC 50/60Hz >0.9 205x50x32 mm
WLD-A50 50W 220-240VAC 50/60Hz >0.9 205x50x32 mm
WLD-A70 70W 220-240VAC 50/60Hz >0.9 205x50x32 mm
WLD-A100 100W 220-240VAC 50/60Hz >0.9 205x50x32 mm

 Waterproof LED Driver

Application
LED outdoor street lamp, tunnel lamp etc
IP67 Waterproof LED Driver range from 20-100W


Technical data
High Efficiency
Strong Aluminium Case, IP67
Cooling by Free Air Convection
100% Full Load Burn-in Test
Low Cost and High Reliability
3 Years Warranty
Protections: Open Circuit, Short Circuit, Over Load
