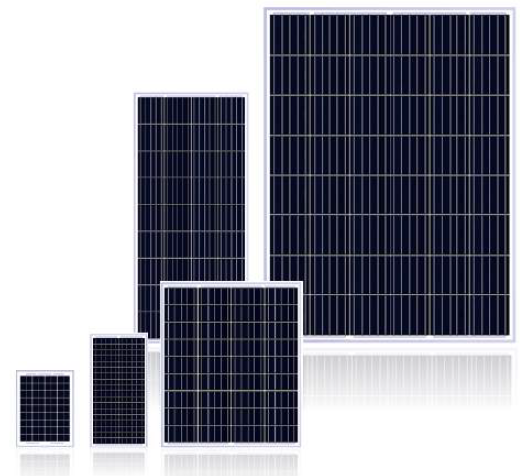

Solar Module-Poly 36 Cells

Poly 36 Cells



Model No. Pmax Vmp Imp Voc Isc
YH150W-18P 150W 18.61V 8.10A 22.19V 8.62A
YH140W-18P 140W 18.81V 7.44A 22.60V 7.92A
YH130W-18P 130W 18.44V 7.05A 22.13V 7.51A
YH120W-18P 120W 18.01V 6.67A 21.61V 6.25A
YH110W-18P 110W 18.77V 5.87A 22.52V 5.80A
YH100W-18P 100W 18.38V 5.45A 22.06V 5.55A
YH95W-18P 95W 18.25V 5.21A 21.90V 4.60A
YH80W-18P 80W 18.54V 4.32A 22.25V 4.38A
YH75W-18P 75W 18.26V 4.11A 22.91V 4.12A
YH70W-18P 70W 18.11V 3.87A 21.73V 3.73A
YH65W-18P 65W 18.58V 3.50A 22.30V 3.47A
YH60W-18P 60W 18.46V 3.26A 22.15V 3.20A


Specification
No.of Poly Crystalline solar cells 36pcs
Maximum system voltage 1000V DC
Voltage temperature coefficient Voc -0.389%
Current temperature Coefficient Isc +0.057%
Power Temperature Coefficient Isc -0.47%

Product features
High conversion efficiency
Power tolerance of 0-+3%
Bypass diodes to recuce loss in partial shadow
IP65-67
