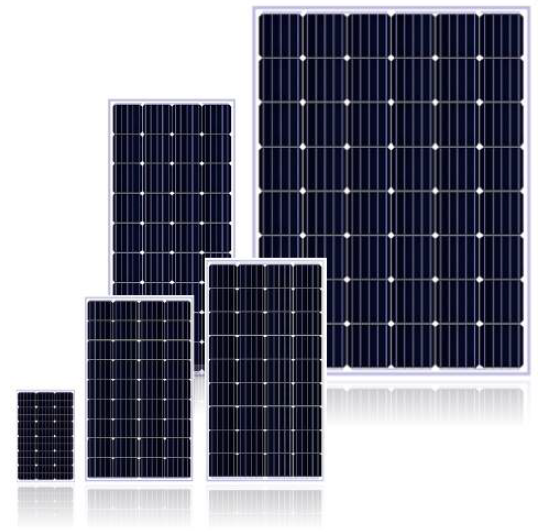

Solar Module-Mono 36 Cells

Mono 36 Cells



Model No.	Pmax	Vmp	Imp	Voc	Isc
YH150W-18M	150W	18.99V	7.90A	22.42V	8.45A
YH140W-18M	140W	18.83V	7.44A	22.60V	7.92A
YH130W-18M	130W	18.44V	7.05A	22.13V	7.51A
YH120W-18M	120W	18.01V	6.67A	21.61V	6.25A
YH110W-18M	110W	18.77V	5.87A	22.52V	5.80A
YH100W-18M	100W	18.38V	5.45A	22.06V	5.55A
YH95W-18M	95W	18.25V	5.21A	21.90V	4.60A
YH80W-18M	80W	18.54V	4.32A	22.25V	4.38A
YH75W-18M	75W	18.26V	4.11A	22.91V	4.12A
YH70W-18M	70W	18.11V	3.87A	21.73V	3.73A
YH65W-18M	65W	18.58V	3.50A	22.30V	3.47A
YH60W-18M	60W	18.46V	3.26A	22.15V	3.20A

Specification
No.of Mono Crystalline solar cells 36pcs
Maximum system voltage 1000V DC
Voltage temperature coefficient Voc -0.389%
Current temperature Coefficient Isc +0.057%
Power Temperature Coefficient Isc -0.47%

Product features
High conversion efficiency
Power tolerance of 0-+3%
Bypass diodes to recuce loss in partial shadow
IP65-67
