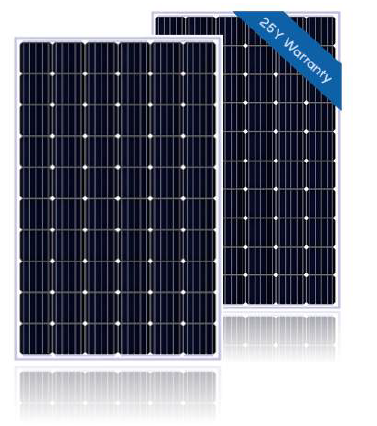

Solar Module-Mono 60 Cells
Mono 60 Cells
Application
On-grid residential roof-tos, on-grid commercial/industrial roof-tops, off-grid system
Product features
High conversion efficiency
Power tolerance of 0-+3%
Can withstand high wind-pressure, snow load and extreme temperature
Passing IEC 61215 2400Pa mechanical load test Solar power plants
Quality and Safety
12-years warranty on products materials and processing technology
Power output warranty: 10 years:90%, and 85% in 25 years
Components & Mechanical Data
Cell (mm):156*156/156.75*156.75 Mono
Dimensions(mm): 1640*992*35
No. of Cells(pcs):60(6x10)
Weight(Kg):18.6
Front Glass Thickness (mm):3.2
Certified Wind/Snow Load: 2400/5400Pa
Allowable Hali Load:23m/s. 7.53g
Junction Box Type: Pass the TUV Certificate
Bypass Diode Rating(A):20
Cable & Connector Type: Pass the TUV Certificate
Frame( Material Corners, etc.):35#
Backing(Brand Type):TPT
Certifications: IEC61215,IEC61730
Model No. | Pmax | Vmp | Imp | Voc | Isc |
YH265W-30M | 265W | 32.24V | 8.23A | 38.69V | 8.76A |
YH270W-30M | 270W | 32.37V | 8.35A | 38.84V | 8.89A |
YH275W-30M | 275W | 32.56V | 8.45A | 39.07V | 9.00A |
YH280W-30M | 280W | 32.89V | 8.53A | 39.47V | 9.08A |
YH285W-30M | 285W | 33.2V | 8.60A | 39.84V | 9.16A |
Application
On-grid residential roof-tos, on-grid commercial/industrial roof-tops, off-grid system
Product features
High conversion efficiency
Power tolerance of 0-+3%
Can withstand high wind-pressure, snow load and extreme temperature
Passing IEC 61215 2400Pa mechanical load test Solar power plants
Quality and Safety
12-years warranty on products materials and processing technology
Power output warranty: 10 years:90%, and 85% in 25 years
Components & Mechanical Data
Cell (mm):156*156/156.75*156.75 Mono
Dimensions(mm): 1640*992*35
No. of Cells(pcs):60(6x10)
Weight(Kg):18.6
Front Glass Thickness (mm):3.2
Certified Wind/Snow Load: 2400/5400Pa
Allowable Hali Load:23m/s. 7.53g
Junction Box Type: Pass the TUV Certificate
Bypass Diode Rating(A):20
Cable & Connector Type: Pass the TUV Certificate
Frame( Material Corners, etc.):35#
Backing(Brand Type):TPT
Certifications: IEC61215,IEC61730
