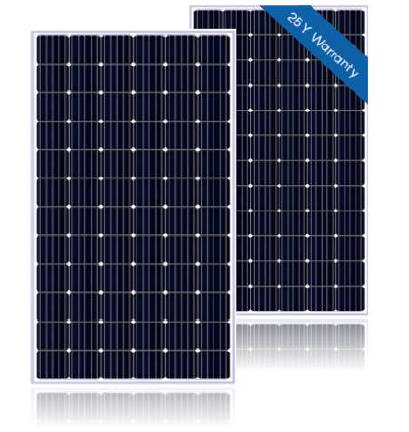

Solar Module-Mono 72 Cells
Mono 72 Cells
Application
On-grid residential roof-tos, on-grid commercial/industrial roof-tops, off-grid system
Product features
High conversion efficiency
Power tolerance of 0-+3%
Can withstand high wind-pressure, snow load and extreme temperature
Passing IEC 61215 2400Pa mechanical load test Solar power plants
Quality and Safety
12-years warranty on products materials and processing technology
Power output warranty: 10 years:90%, and 85% in 25 years
Components & Mechanical Data
Cell (mm):156*156/156.75*156.75 Mono
Dimensions(mm): 1956*992*35
No. of Cells(pcs):72(6x12)
Weight(Kg):23
Front Glass Thickness (mm):3.2
Certified Wind/Snow Load: 2400/5400Pa
Allowable Hali Load:23m/s. 7.53g
Junction Box Type: Pass the TUV Certificate
Bypass Diode Rating(A):20
Cable & Connector Type: Pass the TUV Certificate
Frame( Material Corners, etc.):40#
Backing(Brand Type):TPT
Certifications: IEC61215,IEC61730
Model No. | Pmax | Vmp | Imp | Voc | Isc |
YH310W-36M | 310W | 38.32V | 8.09A | 45.01V | 8.66A |
YH320W-36M | 320W | 38.64V | 8.29A | 46.36V | 9.11A |
YH330W-36M | 330W | 30.03V | 8.46A | 46.84V | 9.01A |
YH340W-36M | 340W | 39.12V | 8.71A | 46.94V | 9.28A |
YH350W-36M | 350W | 39.28V | 8.92A | 47.14V | 9.5A |
Application
On-grid residential roof-tos, on-grid commercial/industrial roof-tops, off-grid system
Product features
High conversion efficiency
Power tolerance of 0-+3%
Can withstand high wind-pressure, snow load and extreme temperature
Passing IEC 61215 2400Pa mechanical load test Solar power plants
Quality and Safety
12-years warranty on products materials and processing technology
Power output warranty: 10 years:90%, and 85% in 25 years
Components & Mechanical Data
Cell (mm):156*156/156.75*156.75 Mono
Dimensions(mm): 1956*992*35
No. of Cells(pcs):72(6x12)
Weight(Kg):23
Front Glass Thickness (mm):3.2
Certified Wind/Snow Load: 2400/5400Pa
Allowable Hali Load:23m/s. 7.53g
Junction Box Type: Pass the TUV Certificate
Bypass Diode Rating(A):20
Cable & Connector Type: Pass the TUV Certificate
Frame( Material Corners, etc.):40#
Backing(Brand Type):TPT
Certifications: IEC61215,IEC61730
