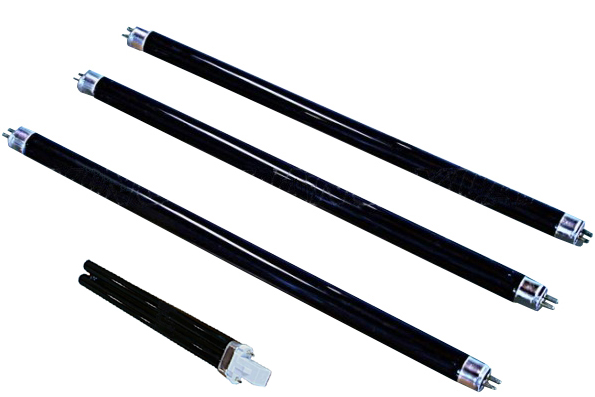

UV lamp-UVA Black tube




Model No. Power Diameter(mm) Length (mm) Base PCS/CTN
UVA-T5/4 4W 16 135.9 G5 500
UVA-T5/6 6W 16 212.1 G5 500
UVA-T5/8 8W 16 288.3 G5 200
UVA-T5/15 15W 16 288.3 G5 200
UVA-T8/15 15W 26 437.4 G13 100
UVA-T8/18 18W 26 589.8 G13 25
UVA-T8/30 30W 26 894.6 G13 25
UVA-T8/36 36W 26 1199.4 G13 25
UVA-PLL/5 5W 12 85 G23 200
UVA-PLL/7 7W 12 115 G23 200
UVA-PLL/9 9W 12 145 G23 200
UVA-PLL/11 11W 12 215 G23 200
UVA-PLL/13 13W 12 155 G23 200
UVA-PLL/18 18W 18 225 2G11 100
UVA-PLL/24 24W 18 320 2G11 100
UVA-PLL/36 36W 18 415 2G11 100

 UV lamp-UVA Black tube

Advantage
The UVA BLB lamps are coated with special blended phosphor to emit radiation peaking at 365mm,it can create UV reaction and effects for various applications such as inspections, detections, and special effects in theatrical presentations, etc
-Emit UV-A light peaking at 365nm
-Specially blended phosphor coating for maximum UV effect and output;
-Flexible design capability for custom lamp development

Product Features
-Emit radiation in the range 380-480nm with a peak wave at 365nm
-Either straight shape or H shape in different UVA intensity;
-Rated Lifespan 8,000-10,000Hrs
