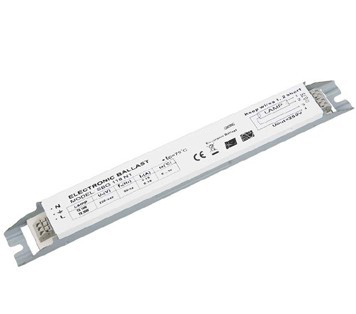

Electronic ballast-EB-D 230V/T5



Model No. Power Power Factor Voltage Lifespan The tube use for
EB-D114 1X14W >0.97 220-240V 50,000Hrs T5/G5
EB-D214 2X14W >0.97 220-240V 50,000Hrs T5/G5
EB-D314 3X14W >0.97 220-240V 50,000Hrs T5/G5
EB-D414 4X14W >0.97 220-240V 50,000Hrs T5/G5
EB-D128 1X28W >0.97 220-240V 50,000Hrs T5/G5
EB-D228 2X28W >0.97 220-240V 50,000Hrs T5/G5
EB-D328 3X28W >0.97 220-240V 50,000Hrs T5/G5
EB-D135 1x35w >0.97 220-240V 50,000Hrs T5/G5
EB-D235 2x35w >0.97 220-240V 50,000Hrs T5/G5
EB-D149 1x49w >0.97 220-240V 50,000Hrs T5/G5
EB-D249 2x49w >0.97 220-240V 50,000Hrs T5/G5

 Model No.: EB-D
T5 Series

Application
EB-D electronic ballasts are specially designed for both commercial and industrial fluorescent lighting applications, and strictly manufactured in compliance with EU standards to ensure exceptional performance, conforming to CE safety certification, operating on 14W,28W,35W,49w of 230v/50Hz ,which can meet different customers' needs and reduce stock cost; high efficiency design and improved performance were adopted so as to achieve the benefits of energy efficiency, users' comfort and energy saving.

Technical Data:
Voltge: 220-240V/50Hz
High Power Factor (PF>0.97)
Voltage adaptable V: 175V~260V
Current chief harmonic ≤20%
Lamp current ware crest coefficient ≤
Energy efficiency grade: A2

Certifications
CE, RoHS
