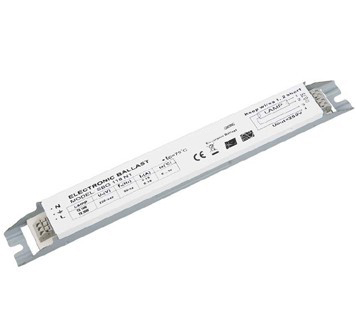

Electronic ballast-EB-C 230V/T8



Model No. Power Power Factor Voltage Lifespan The tube use for
EB-C118 1X18W >0.97 220-240V 50,000Hrs T8/G13
EB-C218 2X18W >0.97 220-240V 50,000Hrs T8/G13
EB-C318 3X18W >0.97 220-240V 50,000Hrs T8/G13
EB-C418 4X18W >0.97 220-240V 50,000Hrs T8/G13
EB-C136 1X36W >0.97 220-240V 50,000Hrs T8/G13
EB-C236 2X36W >0.97 220-240V 50,000Hrs T8/G13
EB-C336 3X36W >0.97 220-240V 50,000Hrs T8/G13
EB-C158 1X58W >0.97 220-240V 50,000Hrs T8/G13
EB-C258 2X58W >0.97 220-240V 50,000Hrs T8/G13

 Model No.: EB-C
T8 Series

Application
EB-C electronic ballasts are specially designed for both commercial and industrial fluorescent lighting applications,
and strictly manufactured in compliance with EU standards to ensure exceptional performance, conforming to CE safety
certification, operating on 18W,36W,58W of 230v/50Hz ,which can meet different customers' needs and reduce stock cost;
high efficiency design and improved performance were adopted so as to achieve the benefits of energy efficiency, users'
comfort and energy saving.

Technical Data:
Voltge: 220-240V/50Hz
High Power Factor (PF>0.97)
Voltage adaptable V: 175V~260V
Current chief harmonic ≤20%
Lamp current ware crest coefficient ≤
Energy efficiency grade: A2

Certifications
CE, RoHS
