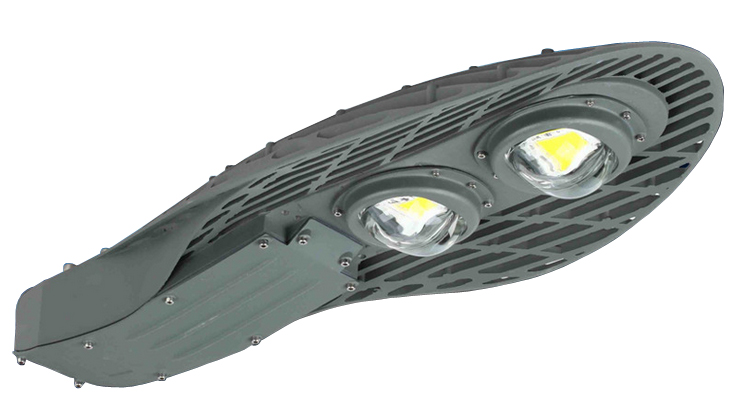

LED Street light-LS-I


Model No. Module Qty. Power Lifespan Luminous Flux Size Qty./Carton
LS-I60-1 1 60W 50,000Hrs CW>2500lm 590X250X110mm 1
LS-I120-2 2 120W 50,000Hrs CW>3200lm 720X250X105mm 1
LS-I180-3 3 180W 50,000Hrs CW>4000lm 810X310X135mm 1

Application
trunk roads,sub-trunk roads,slip roads,bridges,packing lots,parks, villas and other road lighting sites.

Product benefits
Modularization pluggable technology, free on-site maintenance tools
Low cellular cooling technology and high thermal conductivity, the whole structure of the cooling chip,high efficiency heat conduction and heat dissipation performance
Low single star LED light damage does not affect the other light source current
Intelligent constant current driver technology, output stability, break through the life of power, can be automatically adjusted light,
Double coupling ip67 protection, super waterproof level

Technical Data
Lampshade Color: Gray
Material: AL
Voltage : 90-265VAC,50/60HZ.
Power:60w/120W/180W
CRI>70
Power factor>0.96
Working temperature -40-50
IP Rating:IP67
Color Temperature:3000k-6500k
Luminaire efficiency>90%
Storage temperature :-20-50

Certifications
CE ,RoHS, SAA
