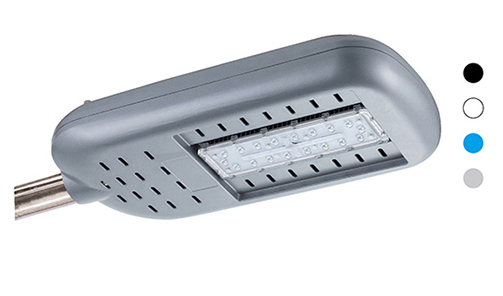

LED Street light-LS-H

Model No.	Module Qty.	Power	Lifespan	Luminous Flux	Size	Qty./Carton
LS-H30-1	1	30W	50,000Hrs	CW>2500lm	520X240X80mm	1
LS-H40-1	1	40W	50,000Hrs	CW>3200lm	520X240X80mm	1
LS-H50-1	1	50W	50,000Hrs	CW>4000lm	520X240X80mm	1
LS-H60-1	1	60W	50,000Hrs	CW>4800lm	520X240X80mm	1
LS-H60-2	2	60W	50,000Hrs	CW>5000lm	520X240X80mm	1
LS-H80-2	2	80W	50,000Hrs	CW>6500lm	520X240X80mm	1
LS-H100-2	2	100W	50,000Hrs	CW>8500lm	520X240X80mm	1
LS-H120-2	2	120W	50,000Hrs	CW>11000lm	520X240X80mm	1

Application
trunk roads,sub-trunk roads,slip roads,bridges,packing lots,parks, villas and other road lighting sites.

Product benefits
Modularization pluggable technology, free on-site maintenance tools
Low cellular cooling technology and high thermal conductivity, the whole structure of the cooling chip,high efficiency heat conduction and heat dissipation performance
Low single star LED light damage does not affect the other light source current
Intelligent constant current driver technology, output stability, break through the life of power, can be automatically adjusted light,
Double coupling ip67 protection, super waterproof level

Technical Data
Lampshade Color: White/Blue/Gray
Material: AL
Voltage : 90-265VAC,50/60HZ.
Power:60w/80w/90W/120W/180W
CRI>70
Power factor>0.96
Working temperature -40��-50��
IP Rating:IP67
Color Temperature:3000k-6500k
Luminaire efficiency>90%
Storage temperature :-20��-50��

Certifications
CE ,RoHS, SAA
