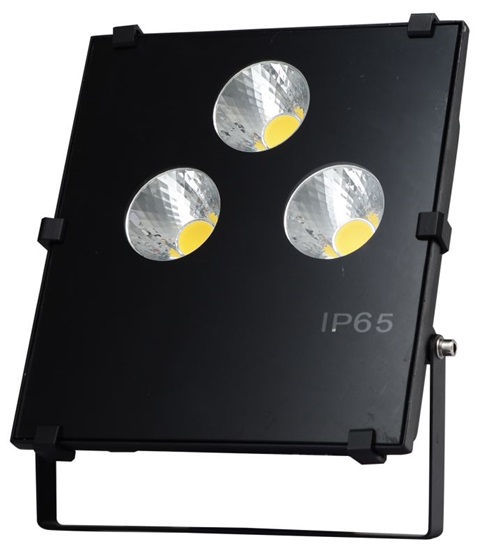

LED Flood light-KL-FL-K


Spotlight Type

Model No. Power Lifespan Luminous Flux Size Protection Class Qty./Carton
KL-LF-K10 10W 50,000Hrs 700 lm 150x130XH55 mm IP65 8
KL-LF-K20 20W 50,000Hrs 1500 lm 180x185XH40 mm IP65 8
KL-LF-K30 30W 50,000Hrs 2200 lm 220x210xH65 mm IP65 8
KL-LF-K45 40W 50,000Hrs 3500 lm 250x260xH75 mm IP65 6
KL-LF-K50 50W 50,000Hrs 4000lm 290x290XH90 mm IP65 4
KL-LF-K100 100W 50,000Hrs 7800 lm 390x285XH180 mm IP65 4
KL-LF-K120 120W 50,000Hrs 1100 lm 330x230XH165 mm IP65 4

Applications
Landscaping buildings, Bridges, Squares, Sports Centers, Tunnels, Garden, Subways, undergrounds,
factories, Club, Hotels, Stages, Parks, Parking lots, Plazas and art Galleriesping Mall, Museum,etc

Technical Data:
Operating voltage: 120-277V, 50/60HZ
Lamp: 10W-120W
Housing: High pressure aluminum die-cast body
Thermal resistant clear tempered glass
Power Factor >95%
Lumen Efficency: 90-110lm/w
RA>75

The design ensures a 50, 000 hours life-span for the LED.
The die-casting aluminium alloy housing is effective in waterproofing and dust prevention. It also helps in removing the heat properly.
Compared with traditional sodium lights, it can save electricity more than 70%.

Ambient temperature for lighting fixture:
-35°C~+50°C

Certifications
CE ,RoHS
