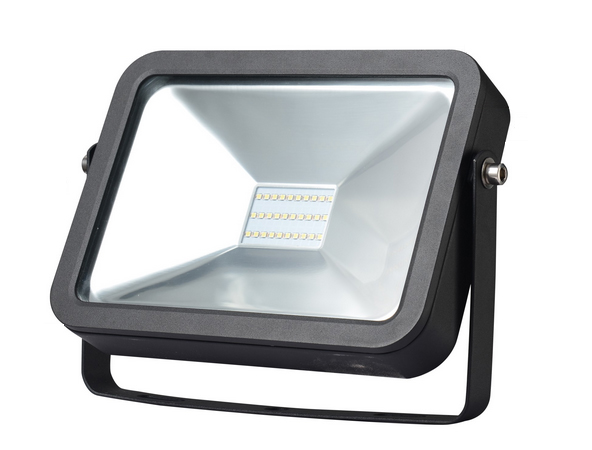

LED Flood light-KL-FL-I


Ultra-thin SMD Type

Model No. Power Lifespan Luminous Flux Size Protection Class Qty./Carton
KL-LF-I10 10W 50,000Hrs 700 lm 168x230xH40 mm IP66 8
KL-LF-I20 20W 50,000Hrs 1500 lm 230x168xH40 mm IP66 8
KL-LF-I30 30W 50,000Hrs 2200 lm 230x168xH40 mm IP66 8
KL-LF-I50 50W 50,000Hrs 4000 lm 285x184xH40 mm IP66 6

Applications
Landscaping buildings, Bridges, Squares, Sports Centers, Tunnels, Garden, Subways, undergrounds,
factories, Club, Hotels, Stages, Parks, Parking lots, Plazas and art Galleriesping Mall, Museum,
Airport, Carpark, etc

Technical Data:
Operating voltage: 120-277V, 50/60HZ
Lamp: 10W-50W
Housing: High pressure aluminum die-cast body
Thermal resistant clear tempered glass
Power Factor >95%
Lifespan >50000Hrs
Lumen Efficency: 90-110lm/w
RA>75

The design ensures a 50, 000 hours life-span for the LED.
The die-casting aluminium alloy housing is effective in waterproofing and dust prevention. It also helps in removing the heat properly.
Compared with traditional sodium lights, it can save electricity more than 70%.
No ill glare; No abrupt & No frequent flashes. No delay start

Ambient temperature for lighting fixture:
-35°C~+50°C

Certifications
CE ,RoHS
