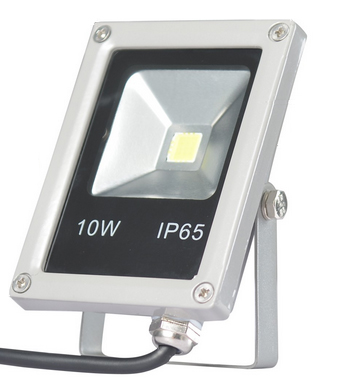

LED Flood light-KL-FL-G



Rectangle Type

Model No. Power Lifespan Luminous Flux Size Protection Class Qty./Carton
KL-LF-G10 10W 50,000Hrs 700 lm 115x85xH35 mm IP66 8
KL-LF-G20 20W 50,000Hrs 1500 lm 179x142xH42 mm IP66 8
KL-LF-G30 30W 50,000Hrs 2200 lm 223x180xH45 mm IP66 8
KL-LF-A50 50W 50,000Hrs 4000 lm 223x180xH45 mm IP66 6
KL-LF-A70 70W 50,000Hrs 5500lm 283x230xH55 mm IP66 4
KL-LF-A100 100W 50,000Hrs 8000 lm 340x287xH70 mm IP66 4

Applications
Landscaping buildings, Bridges, Squares, Sports Centers, Tunnels, Garden, Subways, undergrounds,
factories, Club, Hotels, Stages, Parks, Parking lots, Plazas and art Galleriesping Mall, Museum,
Airport, Carpark, etc

Technical Data:
Operating voltage: 120-277V, 50/60HZ
Lamp: 10W-100W
Housing: High pressure aluminum die-cast body
Thermal resistant clear tempered glass
Power Factor >95%
Lifespan >50000Hrs
Lumen Efficency: 90-110lm/w
RA>75

The design ensures a 50, 000 hours life-span for the LED.
The die-casting aluminium alloy housing is effective in waterproofing and dust prevention. It also helps in removing the heat properly.
Compared with traditional sodium lights, it can save electricity more than 70%.
No ill glare; No abrupt & No frequent flashes. No delay start

Ambient temperature for lighting fixture:
-35°C~+50°C

Certifications
CE ,RoHS
