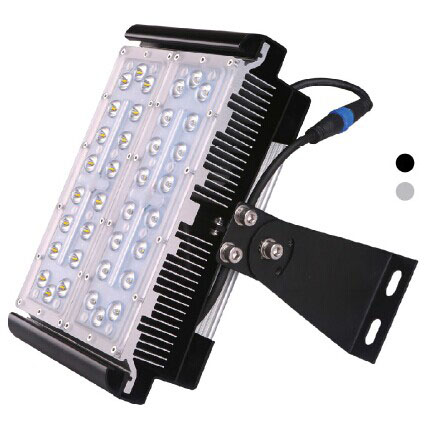

LED Tunnel Light-LT-B



Model No. Module Qty. Power Lifespan Luminous Flux Size Qty./Carton
TL-B30-1 1 30W 50,000Hrs CW>2550lm 85X309X150mm 1
TL –B40-1 1 40W 50,000Hrs CW>3400lm 85X309X150mm 1
TL –B50-1 1 50W 50,000Hrs CW>4500lm 85X309X150mm 1
TL -B60-1 1 60W 50,000Hrs CW>5500lm 85X309X150mm 1
TL-B80-2 2 80W 50,000Hrs CW>7500lm 170X309X150mm 1
TL –B100-2 2 100W 50,000Hrs CW>9500lm 170X309X150mm 1
TL –B120-2 2 120W 50,000Hrs CW>11500lm 170X309X150mm 1
TL –B150-3 3 150W 50,000Hrs CW>13500lm 255X309X150mm 1
TL –B180-3 3 180W 50,000Hrs CW>16500lm 255X309X150mm 1

Application
Tunnel, trunk roads,sub-trunk roads,slip roads,bridges,and other road lighting sites.

Product benefits
Modularization pluggable technology, free on-site maintenance tools
Low cellular cooling technology and high thermal conductivity, the whole structure of the cooling chip,high efficiency heat conduction and heat dissipation performance
Low single star LED light damage does not affect the other light source current
Intelligent constant current driver technology, output stability, break through the life of power, can be automatically adjusted light,
Double coupling ip67 protection, super waterproof level
Low function of human learning with light, the light uniform distribution
Long service time and low maintenance costs.

Technical Data
Lampshade Color: Black/Gray
Material: AL
Voltage : 90-265VAC,50/60HZ.
Power:30w/40w/50w/60w/80w/90W/100W/120W/150W/180W
CRI>70
Power factor>0.96
Working temperature -40-50
IP Rating:IP67
Color Temperature:3000k-6500k
Luminaire efficiency>90%
Storage temperature :-20-50

Certifications
CE ,RoHS, SAA
