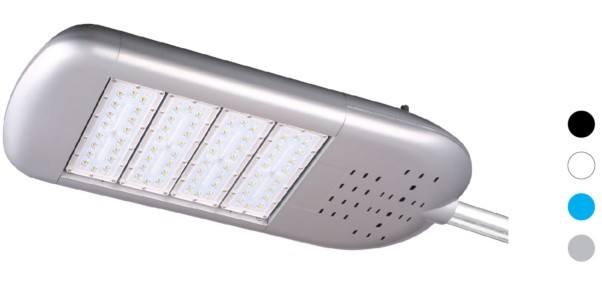

LED Street light-LS-E


Model No. Module Qty. Power Lifespan Luminous Flux Size Qty./Carton
LS-E60-2 2 60W 50,000Hrs CW>5100lm 630X330X83.5mm 1
LS-E80-2 2 80W 50,000Hrs CW>6800lm 630X330X83.5mm 1
LS-E100-2 2 100W 50,000Hrs CW>8500lm 630X330X83.5mm 1
LS-E120-2 2 120W 50,000Hrs CW>10200lm 630X330X83.5mm 1
LS-E90-3 3 90W 50,000Hrs CW>7500lm 630X330X83.5mm 1
LS-E120-3 3 120W 50,000Hrs CW>10200lm 630X330X83.5mm 1
LS-E150-3 3 150W 50,000Hrs CW>12750lm 630X330X83.5mm 1
LS-E180-3 3 180W 50,000Hrs CW>15400lm 630X330X83.5mm 1


Application
trunk roads,sub-trunk roads,slip roads,bridges,packing lots,parks, villas and other road lighting sites.
Product benefits

Modularization pluggable technology, free on-site maintenance tools
Low cellular cooling technology and high thermal conductivity, the whole structure of the cooling chip,high efficiency heat conduction and heat dissipation performance
Low single star LED light damage does not affect the other light source current
Intelligent constant current driver technology, output stability, break through the life of power, can be automatically adjusted light,
Double coupling ip67 protection, super waterproof level
Low function of human learning with light, the light uniform distribution
Long service time and low maintenance costs.

Technical Data
Lampshade Color: Black/White/Blue/Gray
Material: AL
Voltage : 90-265VAC,50/60HZ.
Power:60w/80w/90W/100W/120W/150W/180W
CRI>70
Power factor>0.96
Working temperature -40-50
IP Rating:IP67
Color Temperature:3000k-6500k
Luminaire efficiency>90%
Storage temperature :-20-50

Certifications
CE ,RoHS, SAA
