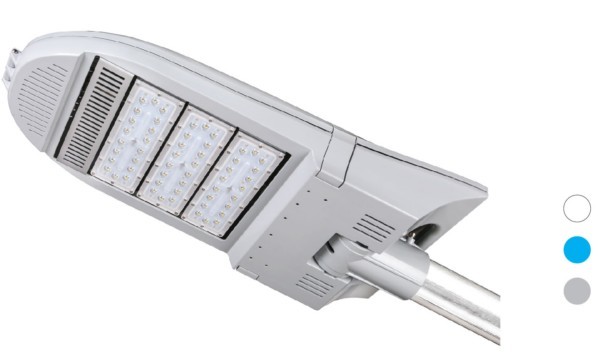

LED Street light-LS-F



Model No.	Module Qty.	Power	Lifespan	Luminous Flux	Size	Qty./Carton
LS-F60-2	2	60W	50,000Hrs	CW>5100lm	765X350X165mm	1
LS-F80-2	2	80W	50,000Hrs	CW>6800lm	765X350X165mm	1
LS-F100-2	2	100W	50,000Hrs	CW>8500lm	765X350X165mm	1
LS-F120-2	2	120W	50,000Hrs	CW>10200lm	765X350X165mm	1
LS-F90-3	3	90W	50,000Hrs	CW>7500lm	765X350X165mm	1
LS-F120-3	3	120W	50,000Hrs	CW>10200lm	765X350X165mm	1
LS-F150-3	3	150W	50,000Hrs	CW>12750lm	765X350X165mm	1
LS-F180-3	3	180W	50,000Hrs	CW>15400lm	765X350X165mm	1

Application
trunk roads,sub-trunk roads,slip roads,bridges,packing lots,parks, villas and other road lighting sites.

Product benefits
Modularization pluggable technology, free on-site maintenance tools
Low cellular cooling technology and high thermal conductivity, the whole structure of the cooling chip,high efficiency heat conduction and heat dissipation performance
Low single star LED light damage does not affect the other light source current
Intelligent constant current driver technology, output stability, break through the life of power, can be automatically adjusted light,
Double coupling ip67 protection, super waterproof level
Low function of human learning with light, the light uniform distribution
Long service time and low maintenance costs.

Technical Data
Lampshade Color: Gray/White/Blue
Material: AL
Voltage : 90-265VAC,50/60HZ.
Power:60w/80w/90W/100W/120W/150W/180W
CRI>70
Power factor>0.96
Working temperature -40��-50��
IP Rating:IP67
Color Temperature:3000k-6500k
Luminaire efficiency>90%
Storage temperature :-20��-50��

Certifications
CE ,RoHS, SAA
