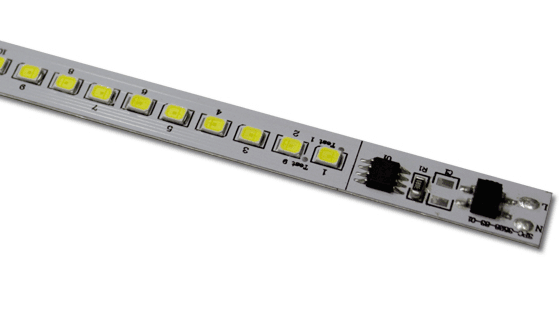

Driverless led module-LM-T


Model No. LED Qty. Power Lifespan Luminous Flux Size Voltage Qty./Carton
LM-T10-A 48 10w 40,000Hrs CW>800lm 564*12mm AC 180-240V 2000
LM-T20-A 92 20w 40,000Hrs CW>1600lm 1174*12mm AC 180-240V 2000
LM-T24-A 116 24w 40,000Hrs CW>2000lm 1465*12mm AC 180-240V 2000

Applications
For source of led tube ,it can be directly connect with the 220-240v cricuit, save the cost of led drive

Product benefits
Long life, use 50000~80000 hours.
The best qaulity and the lowest price.
Warranty 3 years.
all color can be done,
Color available in White, Warm white, and RGB
Ambient temperature:-30C -- 80C


Technical Data
Item: LM-T10A ,LM-T20-A,LM-T24-A
Input voltage: AC 180-240V/50-60Hz;
Power: 10W,20W,24W
PF>0.95
Regular Color: Warm White 2700~3000K, White: 5500~6500K.


Certifications
CE ,RoHS,GS
