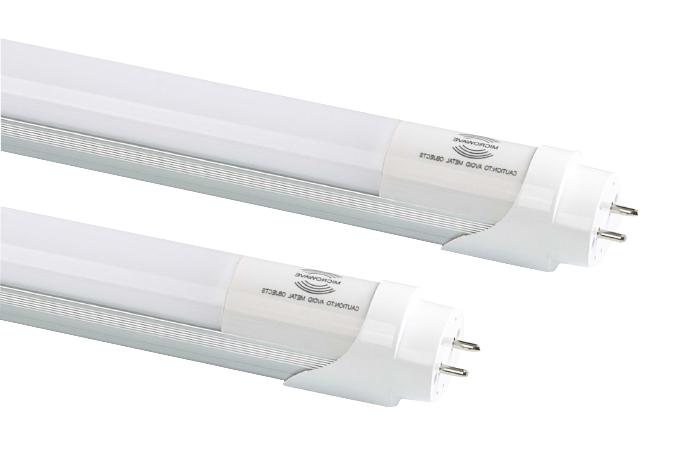

LED Tube-Rader Sensor Series


Model No.  Size (mm) Power Lifespan Luminous Flux C.R.I Input Voltage P.F.C
LT-G10 600 10W 40,000Hrs CW>760lm 75 AC 85-265/305v 0.95
LT-G15 900 15W 40,000Hrs CW>1200lm 75 AC 85-265/305v 0.95
LT-G19 1200 19W 40,000Hrs CW>1550lm 75 AC 85-265/305v 0.95
LT-G21 1200 21W 40,000Hrs CW>1700lm 75 AC 85-265/305v 0.95
LT-G24 1500 24W 40,000Hrs CW>1950lm 75 AC 85-265/305v 0.95
LT-G26 1500 26W 40,000Hrs CW>2150lm 75 AC 85-265/305v 0.95

Applications
Instead of  the indoors ceiling light,School / Universities / Hospital,Conference / Meeting room , Show Room
Commercial Complexes,Factories / Offices,Super-markets,Residential / Institution buildings Warranty

Product benefits
Very low energy consumption
Extremely long life
Shockproof and vibration-proof thanks to LED technology
No UV and near-IR radiation
No RF interference, Lead free

Technical Data
LED type: SMD 3528
Pin type: T8-G13
CRI : > 75
Sensor Angle:0-180 Deg.
Sensitive distance: 5-8 meter
Driver: Non-isolated Rader sensor driver
Materials: Aluminum Base + Transparent PC Cover/ Milk PC Cover
Input Voltage: AC85-265V/305V
luminous efficiency:  80lm/W
Power factor: >95%
Working Frequency: 50-60Hz

Certifications
CE ,RoHS
