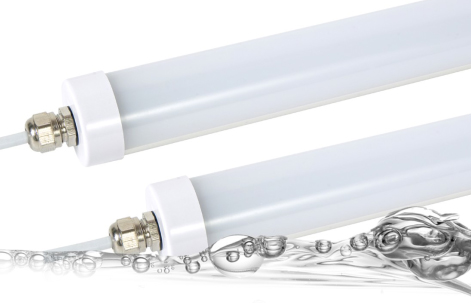

LED Tube-Waterproof Series



Model No.	Size (mm)	Power	Lifespan	Luminous Flux	C.R.I	Input Voltage	P.F.C
LT-D09	600	9W	40,000Hrs	CW>760lm	75	AC 85-265/305v	0.95
LT-D14	900	14W	40,000Hrs	CW>1200lm	75	AC 85-265/305v	0.95
LT-D18	1200	18W	40,000Hrs	CW>1550lm	75	AC 85-265/305v	0.95
LT-D20	1200	20W	40,000Hrs	CW>1750lm	75	AC 85-265/305v	0.95
LT-D25	1500	25W	40,000Hrs	CW>2150lm	75	AC 85-265/305v	0.95



Applications
Instead of  the indoors ceiling light,School / Universities / Hospital,Conference / Meeting room , Show Room
Commercial Complexes,Factories / Offices,Super-markets,Residential / Institution buildings Warranty

Product benefits
Very low energy consumption
Extremely long life
Shockproof and vibration-proof thanks to LED technology
No UV and near-IR radiation
No RF interference, Lead free

Technical Data
LED type: SMD 3528
Pin type: Waterproof connector
CRI : > 85
Materials: Aluminum Base + Transparent PC Cover/ Milk PC Cover
Input Voltage: AC85-265V/305V
luminous efficiency:  80lm/W
Power factor: >95%
Working Frequency: 50-60Hz

Certifications
CE ,RoHS
