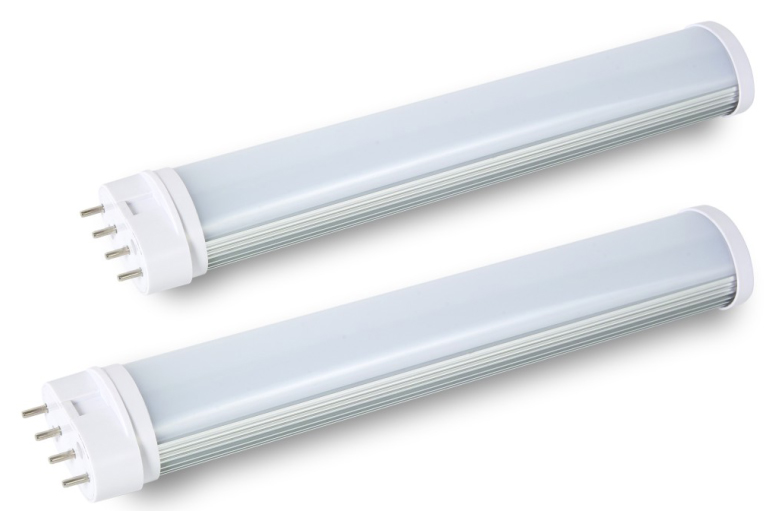

LED Tube-2G11 Series


Model No.  Size (mm) Power Lifespan Luminous Flux C.R.I Input Voltage P.F.C
LT-C08 225 8W 40,000Hrs CW>840lm 85 AC 85-265/305v 0.95
LT-C12 320 12W 40,000Hrs CW>1240lm 85 AC 85-265/305v 0.95
LT-C15 410 15W 40,000Hrs CW>1550lm 85 AC 85-265/305v 0.95
LT-C25 535 18W 40,000Hrs CW>1900lm 85 AC 85-265/305v 0.95


Applications
Instead of  the indoors ceiling light,School / Universities / Hospital,Conference / Meeting room , Show Room
Commercial Complexes,Factories / Offices,Super-markets,Residential / Institution buildings Warranty

Product benefits
Very low energy consumption
Extremely long life
Shockproof and vibration-proof thanks to LED technology
No UV and near-IR radiation
No RF interference, Lead free

Technical Data
LED type: SMD 3528
Pin type: 2G11
CRI : > 85
Materials: Aluminum Base + Transparent PC Cover/ Milk PC Cover
Input Voltage: AC85-265V/305V
luminous efficiency:  80lm/W
Power factor: >95%
Working Frequency: 50-60Hz

Certifications
CE ,RoHS
