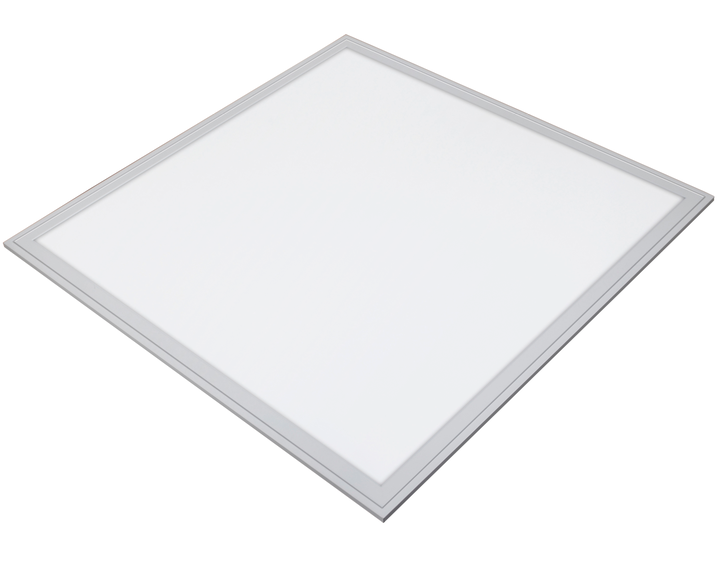

Led Panel-LP-B


Model No. LED Qty. Power Lifespan Luminous Flux Size Fixing way Qty./Carton
LP-B3030 80 10W 50,000Hrs CW>610lm 300X300 mm In-built/hanging   8
LP-B6060 320 36W 50,000Hrs CW>2600lm 600X600 mm In-built/hanging   5
LP-B6060 420 45W 50,000Hrs CW>3200lm 600X600 mm In-built/hanging   5
LP-B6030 160 18W 50,000Hrs CW>1230lm 600X300 mm In-built/hanging   5
LP-B1230 320 36W 50,000Hrs CW>2610lm 1200X300 mm In-built/hanging   5
LP-B1260 480 54W 50,000Hrs CW>3510lm 1200X600 mm In-built/hanging   5
LP-B1260 620 70W 50,000Hrs CW>4510lm 1200X600 mm In-built/hanging   5

Applications
Shopping Mall, Museum, Meeting Room, Hospital, Office, Kitchen, Church, Bathroom, Airport, Car Park, Bathroom Room, Restaurant,Hotel, Gallery, Sitting Room, Garage, School, Cinema, Bedroom etc.

Product benefits
Very low energy consumption
High-efficiency heat dissipation design
Extremely long life, High brightness
Shockproof and vibration-proof thanks to LED technology
No UV and near-IR radiation
No RF interference, Lead free

Technical Data
LED type: SMD 3528
CRI : > 75
Input Voltage: AC85-265V
luminous efficiency:  80lm/W
Power factor: >95%
Working Frequency: 50-60Hz
Operating temperature: -20-+40°
Material: PC cover +Aluminum alloy shell

Certifications
CE ,RoHS
