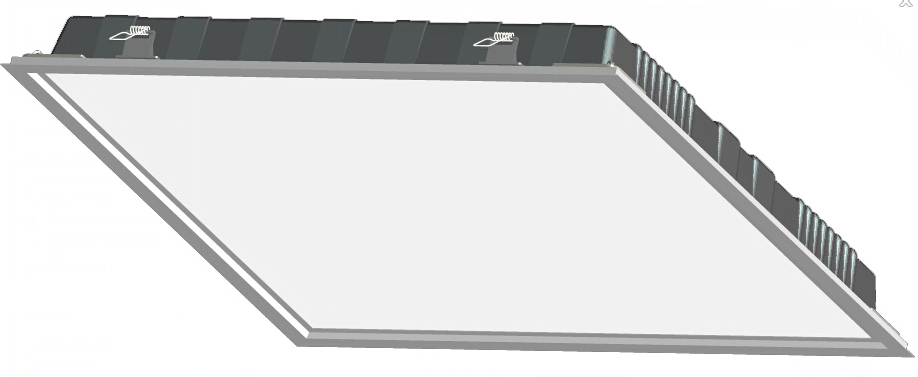

LED Panel-LP-H



Backlight Type

Model No. LED Qty. Power Lifespan Luminous Flux Size Fixing way Qty./Carton
LP-H6060 208 42W 50,000Hrs CW>3150lm 600X600X80 mm In-built 5
LP-H1230 208 42W 50,000Hrs CW>3150lm 1200X300X80 mm In-built 5
LP-H1260 416 84W 50,000Hrs CW>5850lm 1200X600X80 mm In-built 5
LP-H1215 96 20W 50,000Hrs CW>1580lm 1200X150X80 mm In-built 5

Applications
Shopping Mall, Museum, Meeting Room, Hospital, Office, Kitchen, Church, Bathroom, Airport, Car Park, Bathroom Room, Restaurant,Hotel, Gallery, Sitting Room, Garage, School, Cinema, etc.

Product benefits
Very low energy consumption
High-efficiency heat dissipation design
Extremely long life, High brightness
Shockproof and vibration-proof thanks to LED technology
No UV and near-IR radiation
No RF interference, Lead free

Technical Data
LED type: SMD 5730
CRI : > 75
Input Voltage: AC85-265V
Diffusion plate: PS (1.5mm)
The main material (Box+frame): PS/PET+aluminium
Luminescence mode: Backlight


Certifications
CE ,RoHS
