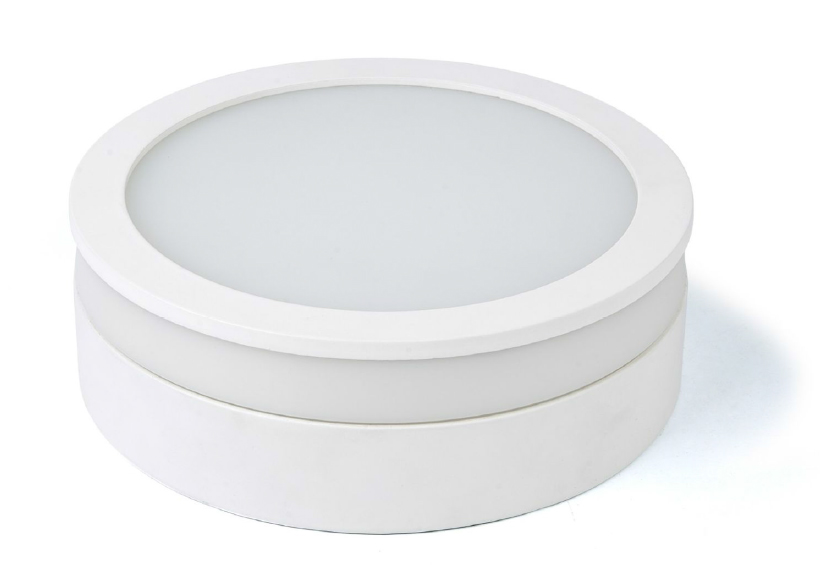

LED Panel-LP-G


Model No. Power C.R.I Lifespan Luminous Flux Size Fixing way Qty./Carton
LP-G06 12W 75 50,000Hrs CW>900lm D122*H45mm Ceiling 8
LP-G12 18W 75 50,000Hrs CW>1350lm D182*H45mm Ceiling 8
LP-G18 24W 75 50,000Hrs CW>1800lm D220*H45mm Ceiling 6

Applications
Shopping Mall, Museum, Meeting Room, Hospital, Office, Kitchen, Church, Bathroom, Airport, Car Park, Bathroom Room, Restaurant,Hotel, Gallery, Sitting Room, Garage, School, Cinema, etc.

Product benefits
Very low energy consumption
High-efficiency heat dissipation design
Extremely long life, High brightness
Shockproof and vibration-proof thanks to LED technology
No UV and near-IR radiation
No RF interference, Lead free

Technical Data
LED type: SMD 2835
CRI : > 75
Input Voltage: AC85-265V
4mm thickness LGP make light soft and comfortable
luminous efficiency:  80lm/W
Power factor: >95%
Working Frequency: 50-60Hz
Operating temperature: -20-+40°
Material: Die Casting ultra Slim AL frame +PMMA Cover

Certifications
CE ,RoHS
