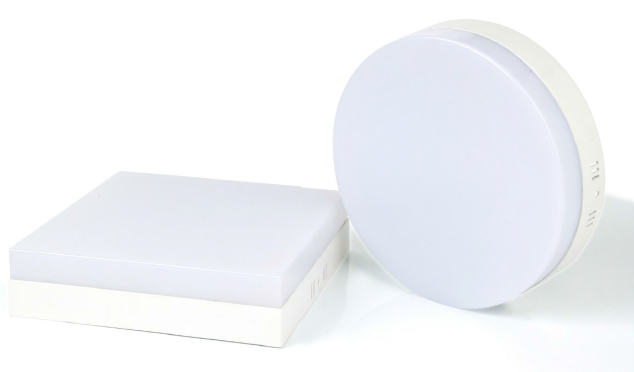

LED Panel-LP-F
Model No. | Power | C.R.I | Lifespan | Luminous Flux | Size | Fixing way | Qty./Carton |
LP-F06 | 6W | 75 | 50,000Hrs | CW>450lm | D90*H45mm | Ceiling | 8 |
LP-F12 | 12W | 75 | 50,000Hrs | CW>900lm | D120*H45mm | Ceiling | 8 |
LP-F18 | 18W | 75 | 50,000Hrs | CW>1350lm | D180*H45mm | Ceiling | 6 |
LP-F24 | 24W | 75 | 50,000Hrs | CW>1800lm | D220*H45mm | Ceiling | 6 |
Applications
Shopping Mall, Museum, Meeting Room, Hospital, Office, Kitchen, Church, Bathroom, Airport, Car Park, Bathroom Room, Restaurant,Hotel, Gallery, Sitting Room, Garage, School, Cinema, etc.
Product benefits
Very low energy consumption
High-efficiency heat dissipation design
Extremely long life, High brightness
Shockproof and vibration-proof thanks to LED technology
No UV and near-IR radiation
No RF interference, Lead free
Technical Data
LED type: SMD 2835
CRI : > 75
Input Voltage: AC85-265V
4mm thickness LGP make light soft and comfortable
luminous efficiency: 80lm/W
Power factor: >95%
Working Frequency: 50-60Hz
Operating temperature: -20-+40°
Material: Die Casting ultra Slim AL frame +PMMA Cover
Certifications
CE ,RoHS
