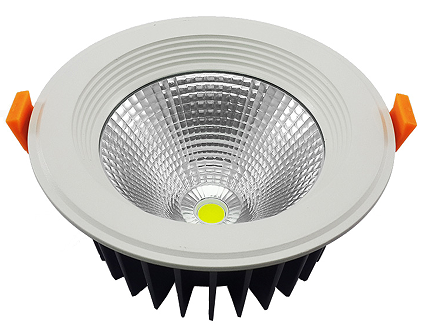

LED Downlight-COB-B



Model No. Power Lifespan Luminous Flux Size Fixing way Cut-out Qty./Carton
COB-B09 9W 40,000Hrs CW>820lm 108XH52mm In-built Ø95 15
COB-B15 15W 40,000Hrs CW>1250lm 142XH65mm In-built Ø125 15
COB-B20 20W 40,000Hrs CW>1750lm 158XH75mm In-built Ø140 12
COB-B30 30W 40,000Hrs CW>1650lm 185XH88mm In-built Ø170 8
COB-B40 40W 40,000Hrs CW>3400lm 226X108mm In-built Ø210 6


Applications
Show window, office building, shopping mall, supermarket, hotel, home, waiting room, meeting room, coffee shop, art gallery, etc.

Product benefits
High thermal conductivity aluminum, good heat dissipation
Solid state light life time up to 40,000Hrs.
Low carbon, environment protection, no UV or IR radiation, mercury & Lead free
Luminous efficiency: a variety of color temperature, high color rendering index
A variety of lighting-emitting angle, a variety of color available
Simple and fashion,elegant in design, simply installation and easily use

Technical Data
Input Voltage:: 100-240VAC
LED Chip: COB
CRI:>75
Working Frequency: 50-60Hz
luminous efficiency:  80lm/W
Operating temperature: -20-+40°
Color temperature: cool white/warm white/daylight white
Material: AL + Glass

Certifications
CE ,RoHS
