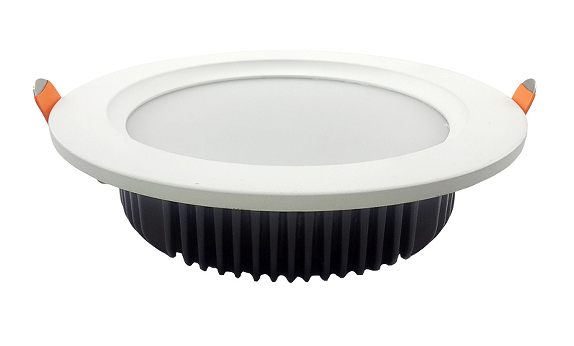

LED Downlight-LD-F


Model No. Power Lifespan Luminous Flux Size Fixing way Cut-out Qty./Carton
LD-F7 7W 40,000Hrs CW>540lm 108*H52mm In-built Ø95 20
LD-F12 12W 40,000Hrs CW>960lm 142*H65mm In-built Ø125 15
LD-F15 15W 40,000Hrs CW>1250lm 158*H75mm In-built Ø140 15
LD-F20 20W 40,000Hrs CW>1600lm 185*H88mm In-built Ø170 12
LD-F30 30W 40,000Hrs CW>2400lm 226*H108mm In-built Ø210 10

Applications
Show window, office building, shopping mall, supermarket, hotel, home, waiting room, meeting room, coffee shop, art gallery, etc.

Product benefits
High thermal conductivity aluminum, good heat dissipation
Solid state light life time up to 40,000Hrs
Low carbon, environment protection, no UV or IR radiation, mercury & Lead free
Luminous efficiency: a variety of color temperature, high color rendering index
A variety of lighting-emitting angle, a variety of color available
Simple and fashion,elegant in design, simply installation and easily use

Technical Data
Input Voltage:: 100-240VAC.
Chip: SMD5730
CRI:>75
Working Frequency: 50-60Hz
luminous efficiency:  80lm/W
Operating temperature: -20-+40°
Color temperature: cool white/warm white/daylight white
Material: Dia-cast aluminum magnesium alloy + Glass

Certifications
CE ,RoHS
