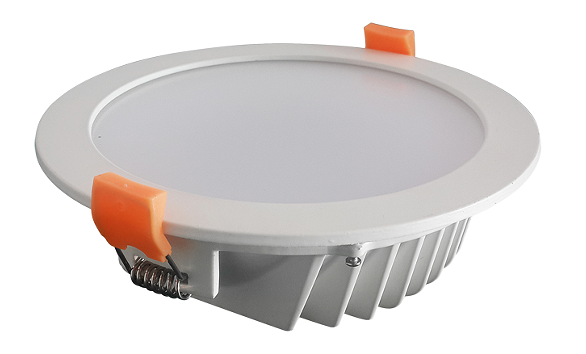

LED Downlight-LD-E



Model No. Power Lifespan Luminous Flux Size Fixing way Cut-out Qty./Carton
LD-E5 5W 40,000Hrs CW>380lm 100*H36mm In-built Ø90 30
LD-E9 9W 40,000Hrs CW>600lm 135*H43mm In-built Ø125 20
LD-E12 12W 40,000Hrs CW>960lm 150*H48mm In-built Ø140 15
LD-E15 15W 40,000Hrs CW>1250lm 180*H48mm In-built Ø170 15
LD-E20 20W 40,000Hrs CW>1600lm 215*H53mm In-built Ø200 12
LD-E30 30W 40,000Hrs CW>2400lm 280*H53mm In-built Ø260 10

Applications
Show window, office building, shopping mall, supermarket, hotel, home, waiting room, meeting room, coffee shop, art gallery, etc.

Product benefits
High thermal conductivity aluminum, good heat dissipation
Solid state light life time up to 40,000Hrs
Low carbon, environment protection, no UV or IR radiation, mercury & Lead free
Luminous efficiency: a variety of color temperature, high color rendering index
A variety of lighting-emitting angle, a variety of color available
Simple and fashion,elegant in design, simply installation and easily use

Technical Data
Input Voltage:: 100-240VAC.
Chip: SMD2835
CRI:>75
Working Frequency: 50-60Hz
luminous efficiency:  80lm/W
Operating temperature: -20-+40°
Color temperature: cool white/warm white/daylight white
Material: Power coated Steel + Glass

Certifications
CE ,RoHS
