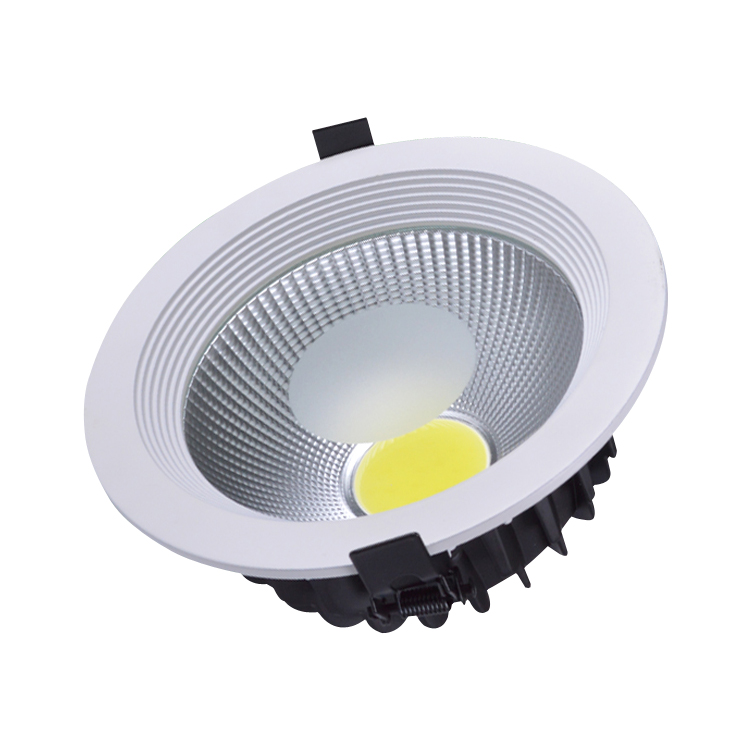

LED Downlight-COB-A




Model No. Power Lifespan Luminous Flux Size Fixing way Cut-out Qty./Carton
COB-A10 10W 40,000Hrs CW>750lm ¢145X63mm In-built Ø110 12
COB-A15 15W 40,000Hrs CW>1050lm ¢185X63mm In-built Ø160 10
COB-A20 20W 40,000Hrs CW>1400lm ¢196X63mm In-built Ø180 8
COB-A30 30W 40,000Hrs CW>2100lm ¢242X63mm In-built Ø210 8



Applications
Show window, office building, shopping mall, supermarket, hotel, home, waiting room, meeting room, coffee shop, art gallery, etc.

Product benefits
High thermal conductivity aluminum, good heat dissipation.
Solid state light life time up to 40,000Hrs
Low carbon, environment protection, no UV or IR radiation, mercury & Lead free
Luminous efficiency: a variety of color temperature, high color rendering index
A variety of lighting-emitting angle, a variety of color available
Simple and fashion,elegant in design, simply installation and easily use

Technical Data
Input Voltage:: 100-240VAC
CRI:>75
Working Frequency: 50-60Hz
luminous efficiency:  80lm/W
Operating temperature: -20-+40°
Color temperature: cool white/warm white/daylight white
Material: AL + Glass

Certifications
CE ,RoHS
