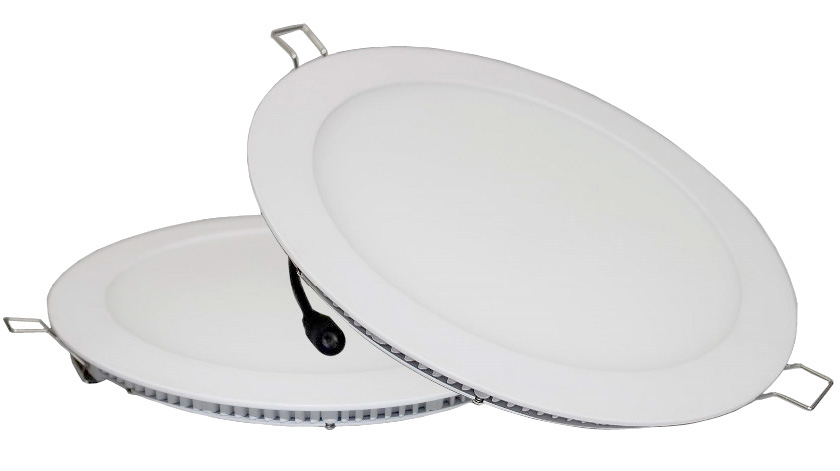

LED Panel-LP-A



Model No. LED Qty. Power Lifespan Luminous Flux Size Fixing way Qty./Carton
LP-A03 15 3W 50,000Hrs CW>280lm ¢92.5*13mm In-built 12
LP-A06 30 6W 50,000Hrs CW>550lm ¢119*13mm In-built 12
LP-A09 45 9W 50,000Hrs CW>800lm ¢148*13mm In-built 8
LP-A12 60 12W 50,000Hrs CW>1080lm ¢167*13mm In-built 8
LP-A15 75 15W 50,000Hrs CW>1380lm ¢193*13mm In-built 6
LP-A18 90 18W 50,000Hrs CW>1680lm ¢225*13mm In-built 6
LP-A24 120 24W 50,000Hrs CW>2080lm ¢300*13mm In-built 4


Applications
Shopping Mall, Museum, Meeting Room, Hospital, Office, Kitchen, Church, Bathroom, Airport, Car Park, Bathroom Room, Restaurant,Hotel, Gallery, Sitting Room, Garage, School, Cinema,  etc.


Product benefits
Very low energy consumption
High-efficiency heat dissipation design
Extremely long life, High brightness
Shockproof and vibration-proof thanks to LED technology
No UV and near-IR radiation
No RF interference, Lead free

Technical Data
LED type: SMD 2835
CRI : > 75
Input Voltage: AC85-265V
luminous efficiency:  80lm/W
Power factor: >95%
Working Frequency: 50-60Hz
Operating temperature: -20-+40°
Material: PC cover +Aluminum alloy shell
