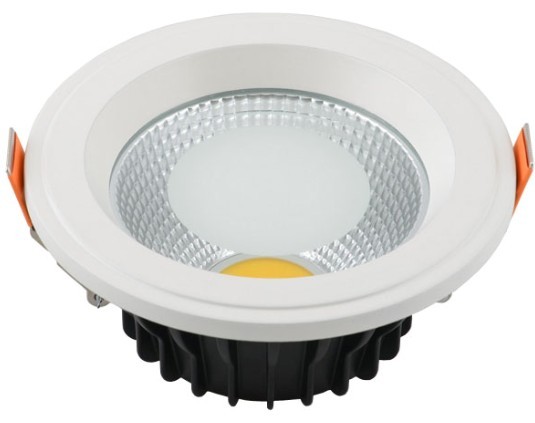

LED Downlight-COB-F




Model No. Power Lifespan Luminous Flux Size Fixing way Cut-out Qty./Carton
COB-F09 9W 40,000Hrs CW>840lm 145*H63mm In-built Ø125 20
COB-F18 18W 40,000Hrs CW>1460lm 196*H63mm In-built Ø170 20
COB-F25 25W 40,000Hrs CW>1880lm 242*H63mm In-built Ø210 10



Applications
Show window, office building, shopping mall, supermarket, hotel, home, waiting room, meeting room, coffee shop, art gallery, etc.


Product benefits
High thermal conductivity aluminum, good heat dissipation.
Solid state light life time up to 40,000Hrs
Low carbon, environment protection, no UV or IR radiation, mercury & Lead free
Luminous efficiency: a variety of color temperature, high color rendering index
A variety of lighting-emitting angle, a variety of color available
Simple and fashion,elegant in design, simply installation and easily use.


Technical Data
Input Voltage:: 85-265VAC
Led Chip : COB
CRI:>75
Working Frequency: 50-60Hz
luminous efficiency:  80lm/W
Operating temperature: -20-+40°
Color temperature: cool white/warm white/daylight white
Material: AL


Certifications
CE ,RoHS
