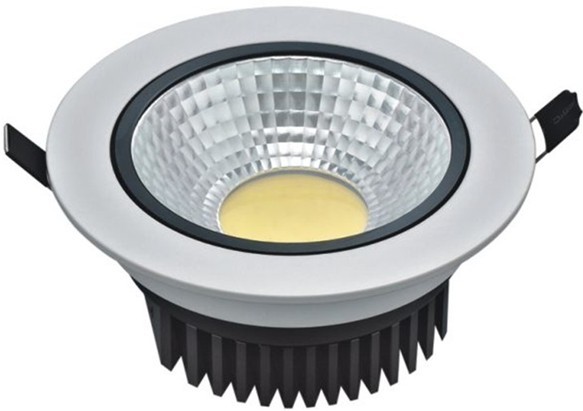

LED Downlight-COB-E




Model No. Power Lifespan Luminous Flux Size Fixing way Cut-out Qty./Carton
COB-E03 3W 40,000Hrs CW>240lm 90*H54mm In-built Ø75 100
COB-E05 5W 40,000Hrs CW>400lm 110*H60mm In-built Ø95 100
COB-E10 10W 40,000Hrs CW>800lm 138*H60mm In-built Ø125 50



Applications
Show window, office building, shopping mall, supermarket, hotel, home, waiting room, meeting room, coffee shop, art gallery, museum, etc.


Product benefits
High thermal conductivity aluminum, good heat dissipation
Solid state light life time up to 40,000Hrs
Low carbon, environment protection, no UV or IR radiation, mercury & Lead free
Luminous efficiency: a variety of color temperature, high color rendering index
A variety of lighting-emitting angle, a variety of color available
Simple and fashion,elegant in design, simply installation and easily use.


Technical Data
Input Voltage:: 100-240VAC
Led Chip : COB
CRI:>75
Working Frequency: 50-60Hz
luminous efficiency:  80lm/W
Operating temperature: -20-+40°
Color temperature: cool white/warm white/daylight white
Material: AL


Certifications
CE ,RoHS
