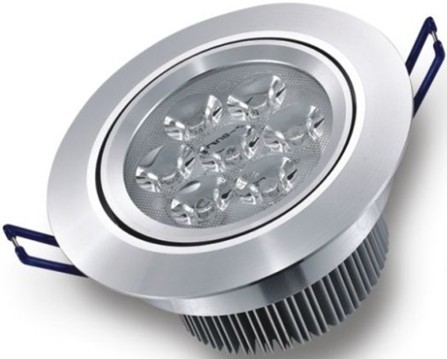

LED Downlight-LD-D



Model No. Power Lifespan Luminous Flux Size Fixing way Cut-out Qty./Carton
LD-D3 3W 40,000Hrs CW>180lm 84*H43mm In-built Ø75 30
LD-D5 5W 40,000Hrs CW>300lm 109*H67mm In-built Ø100 30
LD-D7 7W 40,000Hrs CW>420lm 109*H67mm In-built Ø100 30
LD-D9 9W 40,000Hrs CW>540lm 138*H69mm In-built Ø120 30
LD-D12 12W 40,000Hrs CW>720lm 138*H69mm In-built Ø120 30
LD-D15 15W 40,000Hrs CW>960lm 160*H100mm In-built Ø145 30
LD-D18 18W 40,000Hrs CW>1080lm 160*H100mm In-built Ø145 30



Applications
Show window, office building, shopping mall, supermarket, hotel, home, waiting room, meeting room, coffee shop, art gallery, etc.

Product benefits
High thermal conductivity aluminum, good heat dissipation.
Solid state light life time up to 40,000Hrs
Low carbon, environment protection, no UV or IR radiation, mercury & Lead free
Luminous efficiency: a variety of color temperature, high color rendering index
A variety of lighting-emitting angle, a variety of color available
Simple and fashion,elegant in design, simply installation and easily use.


Technical Data
Input Voltage:: 100-240VAC
CRI:>75
Working Frequency: 50-60Hz
luminous efficiency:  80lm/W
Operating temperature: -20-+40°
Color temperature: cool white/warm white/daylight white
Material: Power coated Steel + Glass

Certifications
CE ,RoHS
