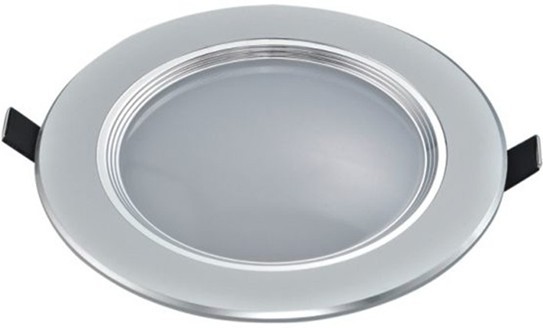

LED Downlight-LD-B




Model No. Power Lifespan Luminous Flux Size Fixing way Cut-out Qty./Carton
LD-B3 3W 40,000Hrs CW>210lm 102*H36mm In-built Ø80 100
LD-B5 5W 40,000Hrs CW>350lm 110*H43mm In-built Ø90 80
LD-B9 9W 40,000Hrs CW>630lm 148*H45mm In-built Ø120 60
LD-B12 12W 40,000Hrs CW>840lm 148*H45mm In-built Ø120 60
LD-B15 15W 40,000Hrs CW>1050lm 181*H50mm In-built Ø150 30
LD-B18 18W 40,000Hrs CW>1260lm 194*H50mm In-built Ø170 20


Applications
Show window, office building, shopping mall, supermarket, hotel, home, waiting room, meeting room, coffee shop, art gallery, etc

Product benefits
High thermal conductivity aluminum, good heat dissipation
Solid state light life time up to 40,000Hrs
Low carbon, environment protection, no UV or IR radiation, mercury & Lead free
Luminous efficiency: a variety of color temperature, high color rendering index
A variety of lighting-emitting angle, a variety of color available
Simple and fashion,elegant in design, simply installation and easily use.

Technical Data
Input Voltage:: 100-240VAC
CRI:>75
Working Frequency: 50-60Hz
luminous efficiency:  80lm/W
Operating temperature: -20-+40°
Color temperature: cool white/warm white/daylight white
Material: Power coated Steel + Glass

Certifications
CE ,RoHS
