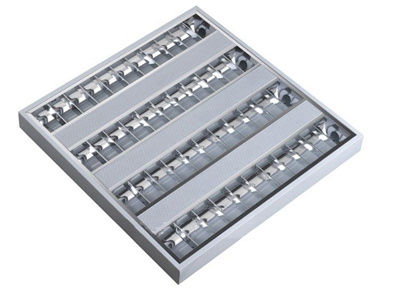

Grille Lamp-T5 Series-Surface mount type



Model No.

Power

Dimension

Installation Method

Protection Class

Qty./Carton

GL-S214

2x14w

610x295x55 mm

Ceiling

IP20

2

GL-S228

2x28w

1220x295x55 mm

Ceiling

IP20

2

GL-S314

3x14w

610x595x55 mm

Ceiling

IP20

2

GL-S328

3x28w

1220x595x55 mm

Ceiling

IP20

2

GL-S414

4x14w

  610x595x55 mm

Ceiling

IP20

2

GL-S428

4x28w

1220x595x55 mm

Ceiling

IP20

2



Application



Shopping Mall, Museum, Meeting Room, Hospital, Office, Airport, Car Park,Bathroom Room, Restaurant,Hotel, Sitting Room, School, Cinema Bedroom etc.



Technical Data

Power Supply : 110v/230v/120~277v , 50/60hz.

Light distribution: direct

Protection class:  class 1-earthing required

Lamp rating: T5 14W/28W/54w

Material: 0.5mm white power coated steel + 0.35mm Chinese aluminum reflector

Wire:copper wires or aluminum wires

Reflector type: I shape or V shade louver

Lamp holder and starter:Fire-retardant and have security guarantee

Ballast: T5 Electronic ballast



Certifications

CE ,RoHS
