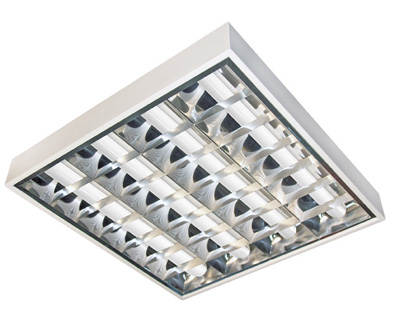

Grille Lamp-T8 Series-Surface mount type



Model No.

Power

Dimension

Installation Method

Protection Class

Qty./Carton

GL-S218

2x18w

610x295x80 mm

Ceiling

IP20

2

GL-S236

2x36w

1220x295x80 mm

Ceiling

IP20

2

GL-S318

3x18w

610x595x80 mm

Ceiling

IP20

2

GL-S336

3x36w

1220x595x80 mm

Ceiling

IP20

2

GL-S418

4x18w

610x595x80 mm

Ceiling

IP20

2

GL-S436

4x36w

1220x595x80 mm

Ceiling

IP20

2

GL-S258

2x58w

1520x295x80mm

Ceiling

IP20

2



Application



Shopping Mall, Museum, Meeting Room, Hospital, Office, Airport, Car Park,Bathroom Room, Restaurant,Hotel, Sitting Room, School, Cinema Bedroom etc.



Technical Data

Power Supply : 110v/230v/120~277v , 50/60hz.

Light distribution: direct

Protection class:  class 1-earthing required

Lamp rating: T8 18W/36W/58w

Material: 0.5mm white power coated steel + 0.32mm Chinese aluminum reflector

Wire:copper wires or aluminum wires

Reflector type: I shape or V shade louver

Lamp holder and starter:Fire-retardant and have security guarantee

Ballast: magnetic ballast or Electronic ballast



Certifications

CE ,RoHS
