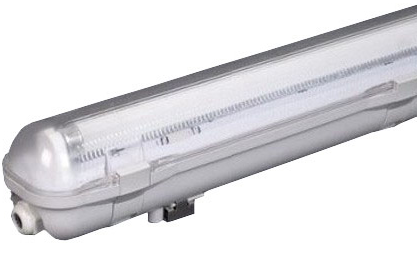

Waterproof lamp-T5 Series
Model No. | Power | Dimension | Carton Dim. | Protection Class | Qty./Carton |
WP-A114/A124 | 1x14w /1X24W | 620x70x85 mm | 63.5X32.5X35.5 cm | IP65 | 16 |
WP-A214/A224 | 2x14w/2X24W | 620x102x85 mm | 63.5x35x35.5 cm | IP65 | 12 |
WP-A128/A154 | 1x28w/1X54W | 1210x70x85 mm | 124x33x27 cm | IP65 | 12 |
WP-A228/A254 | 2x28w/2X54W | 1210x102x83 mm | 124x23.5x35 cm | IP65 | 8 |
WP-A135/A149 | 1x35w/1X49W | 1510x102x85 mm | 153x23.5x37 cm | IP65 | 8 |
WP-A235/A249 | 2x35w/2X49W | 1510x102x85 mm | 153x23.5x37 cm | IP65 | 8 |
Application
supermarket, car park, tunnel, hallway, and etc
Technical Data
Power Supply : 110v/230v/120~277v , 50/60hz
Light distribution: indirect
Lamp rating: T5 14W/28W/35w/49w
Ballast: magnetic ballast or electronic ballast
Material: ABS body + Polychloroprene or Polystyrene cover
Clip: Polychloroprene chip or stainless steel chip
Product benefits
Natural silicon gel sealing strip
Quick fixation distance to help to save labor cost
Easy and fast ceiling installation
IP65 protection for outdoor using
Covert gemel clip design make the appearance smart
Anti aging and high temperature
All accessories has CE and VDE certificate
Removable mounting bracket make the install more easy
Certifications
CE ,RoHS
