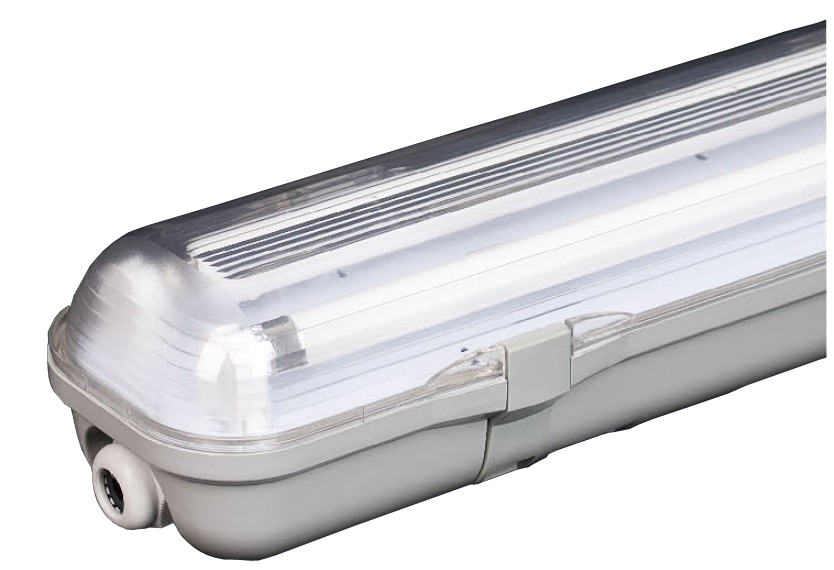

Waterproof lamp-T8 Series


Model No. Power Dimension Carton Dim. Protection Class Qty./Carton
WP-A118 1x18w 670x105x108 mm 69.5x22.5x37.5 cm IP65 10
WP-A218 2x18w 670x165x108 mm 69.5X34.5X30.5 cm IP65 8
WP-A136 1x36w 1270x105x108 mm 129.5x22.5x23.5 cm IP65 6
WP-A236 2x36w 1270x165x108 mm 129.5x18x30.5 cm IP65 4
WP-A158 1x58w 1570x105x108 mm 159.5x22.5x23.5 cm IP65 6
WP-A258 2x58w 1570x165x108 mm 159.5x18x30.5 cm IP65 4

Application
supermarket, car park, tunnel, hallway, and etc

Technical Data
Power Supply : 110v/230v/120~277v , 50/60hz
Light distribution: indirect
Lamp rating: T8 18W/36W/58w
Ballast: magnetic ballast or electronic ballast
Material: ABS body + Polychloroprene or Polystyrene cover
Clip: Polychloroprene chip or stainless steel chip

Product benefits
Natural silicon gel sealing strip
Quick fixation distance to help to save labor cost
Easy and fast ceiling installation
IP65 protection for outdoor using
Covert gemel clip design make the appearance smart
Anti aging and high temperature
All accessories has CE and VDE certificate
Removable mounting bracket make the install more easy

Certifications
CE ,RoHS
