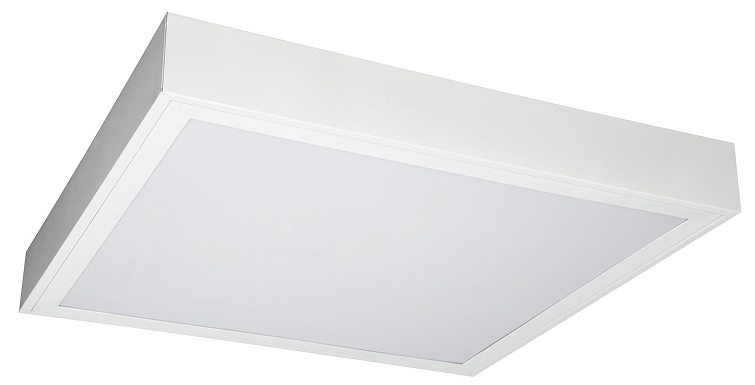

Grille Lamp-T8 Opal/Prismatic Series-Surface mount type
Model No. | Power | Dimension | Installation Method | Protection Class | Qty./Carton |
GLS-O/P 136 | 1x36w | 1195x185x85 mm | Built-in | IP20 | 2 |
GLS- O/P 218 | 2x18w | 595x295x80 mm | Built-in | IP20 | 2 |
GLS- O/P 236 | 2x36w | 1195x295x80 mm | Built-in | IP20 | 2 |
GLS- O/P 318 | 3x18w | 595x595x80 mm | Built-in | IP20 | 2 |
GLS- O/P 336 | 3x36w | 1195x595x80 mm | Built-in | IP20 | 2 |
GLS- O/P 418 | 4x18w | 595x595x80 mm | Built-in | IP20 | 2 |
GLS- O/P 436 | 4x36w | 1195x595x80 mm | Built-in | IP20 | 2 |
GLS- O/P 258 | 2x58w | 1495x295x80mm | Built-in | IP20 | 2 |
Shopping Mall, Museum, Meeting Room, Hospital, Office, Airport, Car Park, Bathroom Room, Restaurant, Hotel, Sitting Room, School, Cinema Bedroom etc.
Technical Data
Power Supply : 110v/230v/120~277v , 50/60hz.
Light distribution: direct
Protection class: class 1-earthing required
Lamp rating: T8 18W/36W/58w
Material: 0.5mm white power coated steel + Opal/Prismatic cover
Wire: copper wires or aluminum wires
Lamp holder and starter: Fire-retardant and have security guarantee
Ballast: T8 Electronic ballast or magnetic ballast
Certifications
CE ,RoHS
