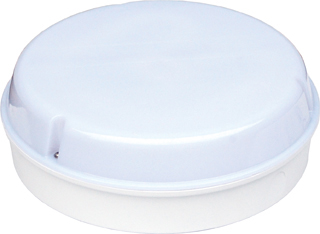

Waterproof lamp--Bulkhead Series-WP-C



Model No.

Power

Dimension

Carton Dim.

Lighting source

Protection Class

Qty./Carton

WP-C116

1X16W

 320x100 mm

 67X44.5X34 cm

2D

IP65

10

WP-C121

1X21W

2D

IP65

10



Application

supermarket, car park, tunnel, hallway, and etc



Technical Data

Power Supply : 110v/230v/120~277v , 50/60hz.

Light distribution: indirect

Lighting source: 2D 16W/21W

Material: PC House + Stainless Steel gear tray

Ballast : Electronic ballast or magnetic ballast





Product benefits

A polycarbonate IP65 rated vandal resistant low energy bulkhead. This fitting comes complete with removable gear-tray and the option of fitting torx screws for added security. It is an ultra slim fitting suitable for vandal prone and weather exposed areas. An integral emergency version is also available.

Body: Injection molded, round shape opaque UV stabled polycarbonate body, waterproof gasket in natural silicon gel, secure the gear tray by "T" shape rotated supports, closing clips in polycarbonate or stainless steel, with optional locking screws for vandal proof function.

Reflector: White-coated round shape flat metal plate.

Diffuser: Injection molded, round shape transparent UV stabilized polycarbonate diffuser, highly impact resistant, it features prismatic design with good anti-glare effect.



Certifications

CE ,RoHS
